EWJ-97045

EWJ-97045

This is a basic comprehensive brake tester for light vehicles is specially designed to fit many other popular brands of brake tester sizes. Therefore; the installation costs of this unit are reduced.

The brake force is measured with a strain gauge transducer.
The roller unit is fitted with sensors detecting the presence of a wheel set on the rollers.
This system ensures that the rollers do not start accidentally.
A speed sensor measures the wheel speed.
A speed sensor measures the roller speed to ensure that the percentage of slippage is correct. The point of wheel lock can be set at 4 different settings.

  • Easy to read display
  • User friendly
  • Modular construction
  • Microprocessor technology
  • Windows based PC for printing and data storage
  • Winbrake Software running VOSA database
  • Colour A4 Printer
  • Prepared for future

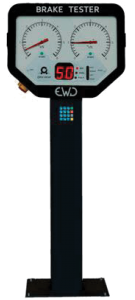

  • Dual pointer display
  • Digital display showing:
    • Imbalance
    • Ovality
    • Weight
    • Pedal pressure
  • Lock-out light indicator
  • Pointer lock
  • Manual operation
  • 4WD operation
  • Date and weight key-in
  • Fused system
  • Pedestal or wall mounted
  • Galvanised roller unit
  • Gritted rollers
  • Worm gear (makes it easy to leave rollers)
  • Prepared for printer
  • Prepared for data transmission
  • · Printer

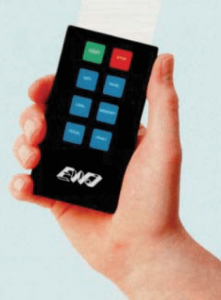

    · Remote control
    · Name on report
    · Pedal pressure gauge
    · Calculation of retardation (%)
    · Axle weighing system
    . Motocycle adaptor
Measuring range
Roller unit
Length
Height
Width
Roller diameter
Roller width
Roller speed
Weight
Motor effect
Power supply
Drive-over weight
0 – 600 kgf
878 mm
214 mm
780 mm
180 mm
700 mm
2.9 kph
170 kg
2 X 3.8 kW
3 x 230-415 VAC 50 Hz
3 tonnes
